Tennis serve kinematics#
This dataset was kindly provided by Fraje Watson, Steve Taylor and Jin (Derrick) Gaokuang from the University College London, Aspire CREATe lab.
These are the bilateral kinematics of four tennis serves, sampled at 50 Hz. The laboratory vertical axis is z.
Markerset#
Marker |
Definition |
Marker |
Definition |
|---|---|---|---|
Derrick:LTOE |
Left toe |
Derrick:RTOE |
Right toe |
Derrick:LHEE |
Left heel |
Derrick:RHEE |
Right heel |
Derrick:LANK |
Left ankle |
Derrick:RANK |
Right ankle |
Derrick:LKNE |
Left knee |
Derrick:RKNE |
Right knee |
Derrick:LASI |
Left anterior-superior iliac spine |
Derrick:RASI |
Right anterior-superior iliac spine |
Derrick:LPSI |
Left posterior-superior iliac spine |
Derrick:RPSI |
Right posterior-superior iliac spine |
Derrick:LSHO |
Left shoulder |
Derrick:RSHO |
Right shoulder |
Derrick:LELB |
Left elbow |
Derrick:RELB |
Right elbow |
Derrick:LWRA |
Left wrist (A) |
Derrick:RWRA |
Right wrist (A) |
Derrick:LWRB |
Left wrist (B) |
Derrick:RWRB |
Right wrist (B) |
Derrick:LFIN |
Left finger |
Derrick:RFIN |
Right finger |
Derrick:LFHD |
Left forehead |
Derrick:RFHD |
Right forehead |
Derrick:LBHD |
Left backhead |
Derrick:RBHD |
Right backhead |
Derrick:C7 |
C7 |
Derrick:T10 |
T10 |
Derrick:STRN |
Sternum |
Derrick:CLAV |
Interclavicular space |
Files#
kinematics_tennis_serve.c3d: Labelled markers, no events, no forces, no analog signals

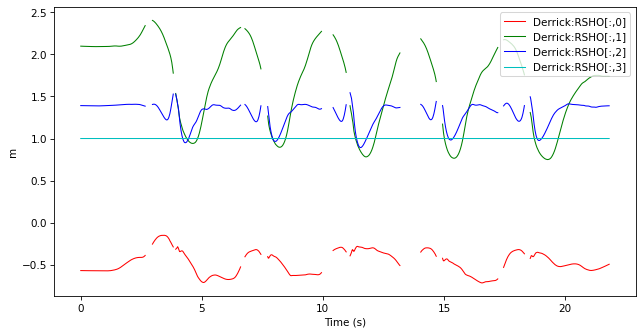

kinematics_tennis_serve_nan.c3d: Same askinematics_tennis_serve.c3d, with simulated missing samples on Derrick:RSHO.
filename = ktk.doc.download("kinematics_tennis_serve_nan.c3d")
markers = ktk.read_c3d(filename)["Points"]
markers.plot("Derrick:RSHO")
kinematics_tennis_serve_2players.c3d: Similar tokinematics_tennis_serve.c3d, but with a simulated second player named Viktor. In this case, the marker set is:
Marker |
Definition |
Marker |
Definition |
|---|---|---|---|
Derrick:LTOE |
Left toe |
Derrick:RTOE |
Right toe |
Derrick:LHEE |
Left heel |
Derrick:RHEE |
Right heel |
Derrick:LANK |
Left ankle |
Derrick:RANK |
Right ankle |
Derrick:LKNE |
Left knee |
Derrick:RKNE |
Right knee |
Derrick:LASI |
Left anterior-superior iliac spine |
Derrick:RASI |
Right anterior-superior iliac spine |
Derrick:LPSI |
Left posterior-superior iliac spine |
Derrick:RPSI |
Right posterior-superior iliac spine |
Derrick:LSHO |
Left shoulder |
Derrick:RSHO |
Right shoulder |
Derrick:LELB |
Left elbow |
Derrick:RELB |
Right elbow |
Derrick:LWRA |
Left wrist (A) |
Derrick:RWRA |
Right wrist (A) |
Derrick:LWRB |
Left wrist (B) |
Derrick:RWRB |
Right wrist (B) |
Derrick:LFIN |
Left finger |
Derrick:RFIN |
Right finger |
Derrick:LFHD |
Left forehead |
Derrick:RFHD |
Right forehead |
Derrick:LBHD |
Left backhead |
Derrick:RBHD |
Right backhead |
Derrick:C7 |
C7 |
Derrick:T10 |
T10 |
Derrick:STRN |
Sternum |
Derrick:CLAV |
Interclavicular space |
Viktor:LTOE |
Left toe |
Viktor:RTOE |
Right toe |
Viktor:LHEE |
Left heel |
Viktor:RHEE |
Right heel |
Viktor:LANK |
Left ankle |
Viktor:RANK |
Right ankle |
Viktor:LKNE |
Left knee |
Viktor:RKNE |
Right knee |
Viktor:LASI |
Left anterior-superior iliac spine |
Viktor:RASI |
Right anterior-superior iliac spine |
Viktor:LPSI |
Left posterior-superior iliac spine |
Viktor:RPSI |
Right posterior-superior iliac spine |
Viktor:LSHO |
Left shoulder |
Viktor:RSHO |
Right shoulder |
Viktor:LELB |
Left elbow |
Viktor:RELB |
Right elbow |
Viktor:LWRA |
Left wrist (A) |
Viktor:RWRA |
Right wrist (A) |
Viktor:LWRB |
Left wrist (B) |
Viktor:RWRB |
Right wrist (B) |
Viktor:LFIN |
Left finger |
Viktor:RFIN |
Right finger |
Viktor:LFHD |
Left forehead |
Viktor:RFHD |
Right forehead |
Viktor:LBHD |
Left backhead |
Viktor:RBHD |
Right backhead |
Viktor:C7 |
C7 |
Viktor:T10 |
T10 |
Viktor:STRN |
Sternum |
Viktor:CLAV |
Interclavicular space |
